NA1002

Description:

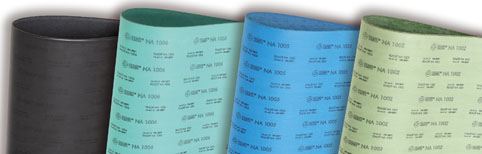

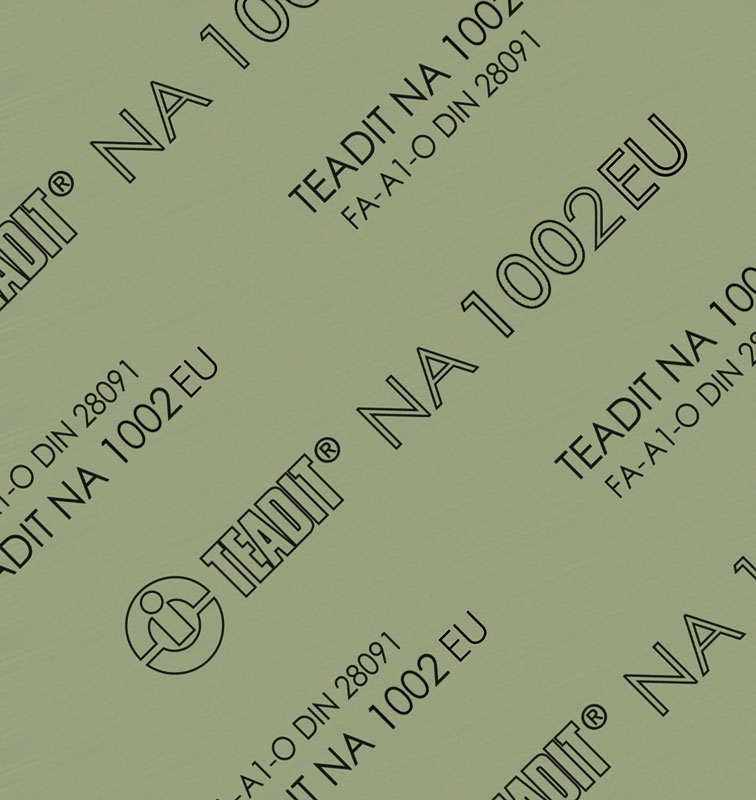

TEADIT style NA-1002EU is a high-end compressed nonasbestos
jointing-sheet material made of aramid fibers and
bonded with nitrile (NBR) rubber.
The material has excellent mechanical, temperature and
chemical properties. It is being manufactured by means of a hot
calender process. TEADIT maintains a quality management
system that is certified according to DIN EN ISO 9001.
Application / service:
TEADIT style NA-1002 is indicated for sealing petroleum
derivatives, water, saturated steam, gases and chemical products
in general. Exceptional performance in connection with gas.
Typical physical properties:
Test Properties Values
ASTM F 36 Compressibility 5-15 %
ASTM F 36 Recovery >50 %
ASTM F 146 Weight increase:
ASTM oil/Nr.3, 5 h/300 °F (150 °C) <15 %
ASTM Fuel B, 5 h/77 °F (25 °C) <10 %
ASTM F 146 Thickness increase:
ASTM oil/Nr. 3, 5 h/300 °F (150 °C) <15 %
ASTM Fuel B, 5 h/77 °F (25 °C) <10 %
ASTM F 152 Tensile strength, transverse 12 N/mm²
- Density app.1,95 g/cm³
Product standard:
• Thickness: 0.5 to 5.0 mm
• Sheet size: 1.500 x 1.600 mm, 1.500 x 3.200 mm

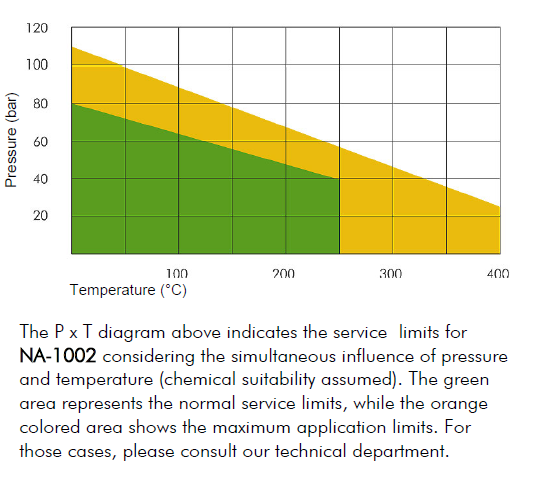

Technical data:
• Peak temperature: +400 °C
• Constant temperature: +260 °C
• Peak pressure: 110 bar
• Constant working pressure: 80 bar
• Color: green
Approvals:
• TA-Luft
• DVGW
• KTW
• WRAS
• ABS
• Blow-Out VDI 2200
• ISO 19221 Flame Resistance
Tests:

• BAM
