NA1006

Description:
TEADIT style NA-1006 is a non-asbestos jointing-sheet material
produced from a blend of fibers bonded with Nitrile rubber
(NBR). It is a commercial fibre sheet grade for low to medium
pressures and temperatures.
It is being manufactured by means of a hot calender process.
TEADIT maintains a quality management system that is certified
according to DIN EN ISO 9001.
Application / Service:
TEADIT style NA-1006 is suitable for water, oils and acids in mild
service.
Typical physical properties:
Test Properties Value
ASTM F 36J Compressibility 10-20 %
ASTM F 36J Recovery - min. >35 %
ASTM F 152 Tensile Strength 4 N/mm²
DIN 52913 Residual Stress 26 N/mm²
ASTM F 1315 Density 1,5-1,75 g/cm³
Product Standard:
• Thickness: 0.8 / 1.0 / 1.6 / 2.0 and 3.0 mm
• Size: 1500 x 1600 mm or 1500 x 3200 mm.

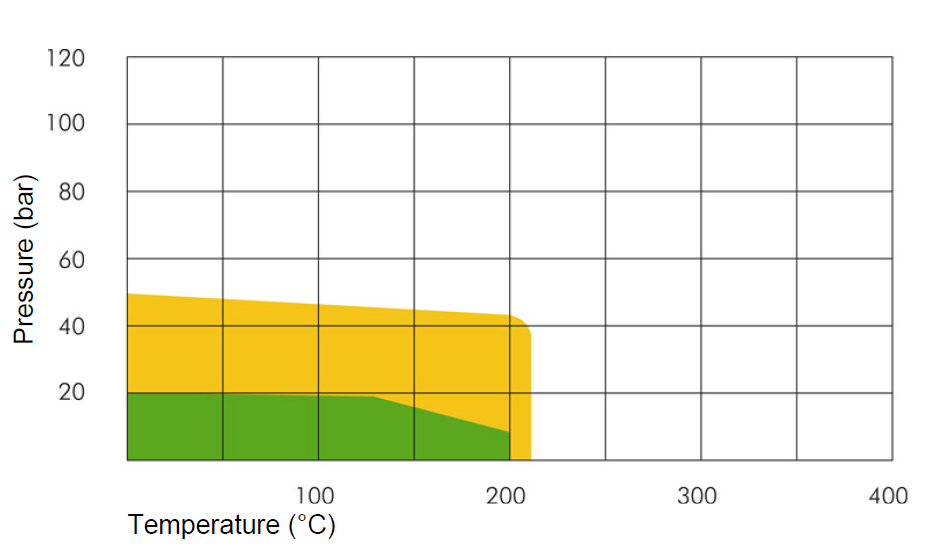

Technical data:
• Limit Temperature
Continuous Service: 200 °C
Maximum: 210 °C
• Pressure Maximum: 50 bar (725 psi)
• Color: Green
Approvals:
• ABS

• WRAS

---

---
