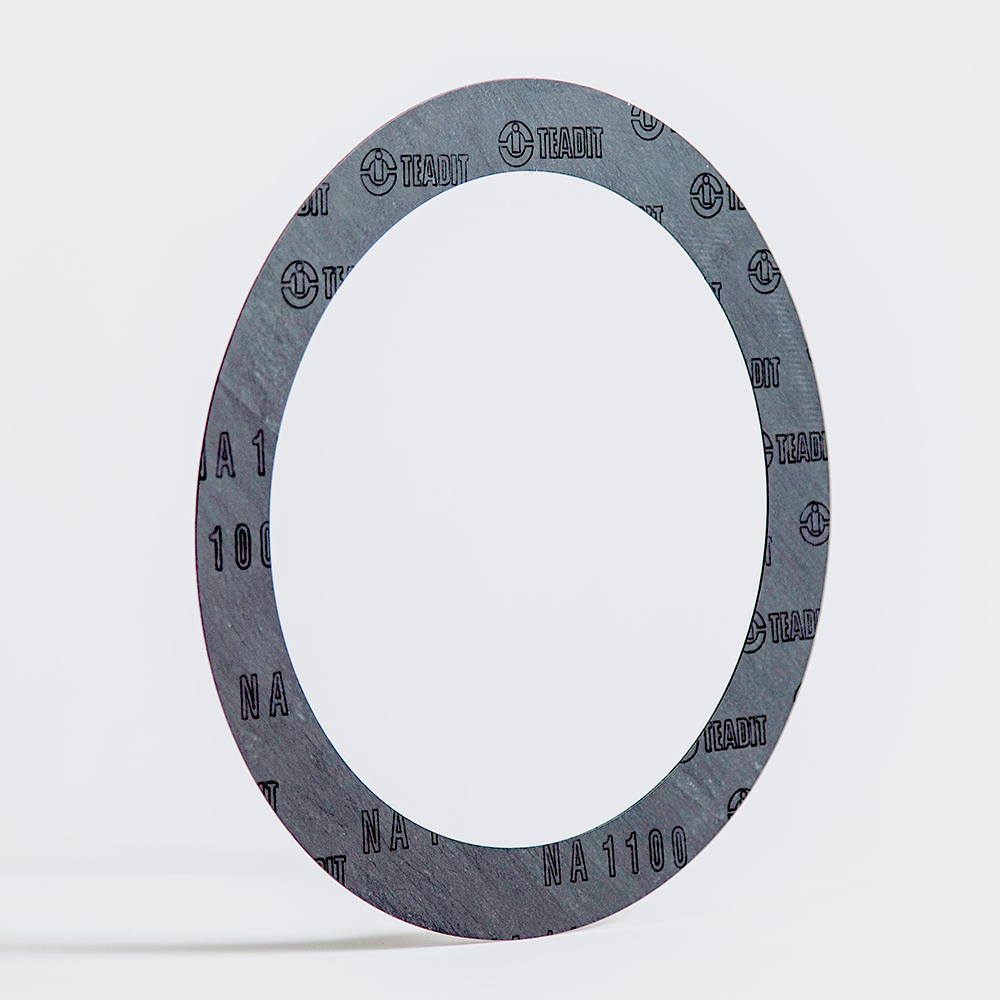

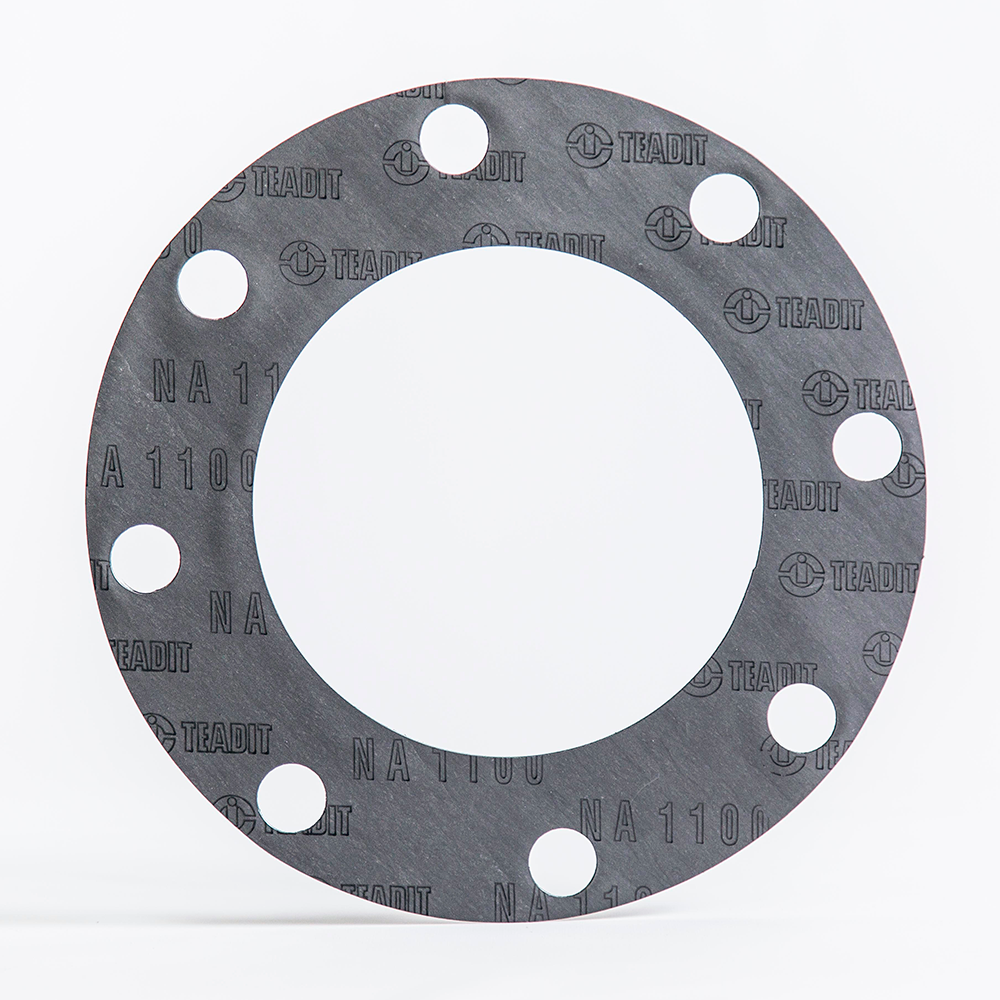

TEADIT NA1100

Compressed Sheet with Carbon FIber, NBR Binder

Description and Applications

TEADIT NA1100 is a universal jointing sheet with high temperature and pressure resistance, manufactured from graphite and carbon fibre, bonded with Nitrile rubber (NBR). It is being manufactured by means of a hot calender process. TEADIT maintains a quality management system that is certified according to DIN EN ISO 9001.

For antistick purposes is the surface equipped with a special graphite finish.

Application / service:

TEADIT NA1100 is suitable for sealing petroleum derivatives, water, saturated steam, solvents, gases and chemical products in general.

Service Limits

Temperature: Continuous Service: 270℃  Maximum Service: 450℃

Pressure: Continuous Service: 70 bar   Maximum Service: 130 bar

Availability:59 x 63 in   118x 126 in

Thickness:1/64″, 1/32″, 1/16″, 3/32″, 1/8″

Color:Black

ASTM F104:F712120E23M6

Typical Physical Properties:

Density                                                                  106 lb/ft3 (1.7 g/cm3)

Compressibility – ASTM F36                             5-15%

Recovery – ASTM F36                                        50%

Tensile Strength Across Grain – ASTM F152   2175psi (15 N/mm2)

Ignition Loss – ASTM F495                                50%

Thickness Increase – ASTM F146 – after 5hr

ASTM Oil IRM 903 @ 150℃                             15%

Fuel B, @ 25℃                                                    15%

Weight Increase – ASTM F146 – after 5hr

ASTM Oil IRM903 @ 150℃                              15%

Fuel B, 25℃                                                          15%

Creep Relaxation – ASTM F38                         22%

Torque Relaxation                                               35N/mm2

Sealability @ 1000psi – ASTM F37                  .2 ml/hr
